Electrical & Lighting

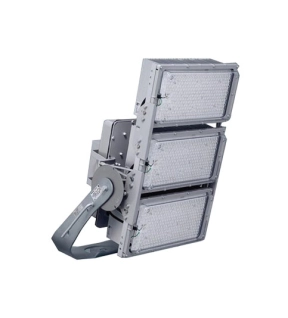

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12747LD2031
Type of Light Source : LED
Power Input : 661W
System Lumen Output : 103400 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 54deg.
Beam Angle : 34deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12747LD2031
Type of Light Source : LED
Power Input : 749W
System Lumen Output : 106400 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 77deg.
Beam Angle : 27deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12827LD2031
Type of Light Source : LED
Power Input : 813W
System Lumen Output : 117300 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 70deg.
Beam Angle : 53deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12837LD2031
Type of Light Source : LED
Power Input : 803W
System Lumen Output : 12000 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 64deg.
Beam Angle : 75deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC

Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12847LD2031
Type of Light Source : LED
Power Input : 783W
System Lumen Output : 122300 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 54deg.
Beam Angle : 34deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC

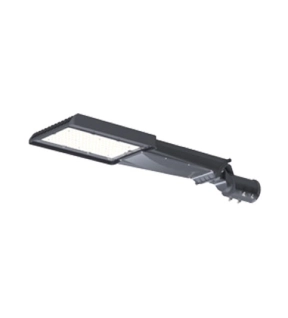

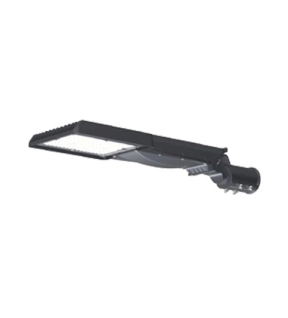

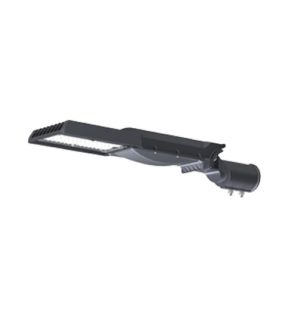

Type of Luminaire : Street Light EVO
Set Model No : NNP11740GL
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 5200 lm
Power Voltage : 100-240V
Power Factor : 0.90
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : 5 steps automatic dimming
IP Rating : 66
Ambient Temperature : 5°C~40°C
Dimensions : 564×157×101mm
Body : ADC

Type of Luminaire : Street Light EVO
Set Model No : NNP11740GL
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 5200 lm
Power Voltage : 100-240V
Power Factor : 0.90
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : 5 steps automatic dimming
IP Rating : 66
Ambient Temperature : 5°C~40°C
Dimensions : 674×142×105mm
Body : ADC

Type of Luminaire : Street Light EVO
Set Model No : NNP11740GL
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 5200 lm
Power Voltage : 100-240V
Power Factor : 0.90
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : 5 steps automatic dimming
IP Rating : 66
Ambient Temperature : 5°C~40°C
Dimensions : 732×212×109mm
Body : ADC

Type of Luminaire : Street Light EVO
Set Model No : NNP11740GL
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 5200 lm
Power Voltage : 100-240V
Power Factor : 0.90
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : 5 steps automatic dimming
IP Rating : 66
Ambient Temperature : 5°C~40°C
Dimensions : 732×212×109mm
Body : ADC

Type of Luminaire : Street Light EVO
Set Model No : NNP11740GL
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 5200 lm
Power Voltage : 100-240V
Power Factor : 0.90
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : 5 steps automatic dimming
IP Rating : 66
Ambient Temperature : 5°C~40°C
Dimensions : 814×218×108mm
Body : ADC

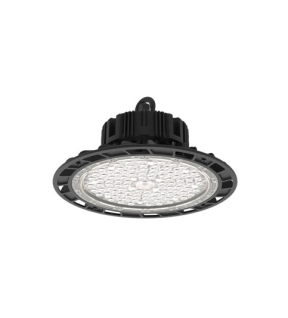

Type of Luminaire : Dimmable High Bay
Set Model No : NNFC20530DZ88
Type of Light Source : LED
Power Input : 85W
System Lumen Output : 11900 lm
System Efficacy : 140 lm/W
Power Voltage : 220-240V
Power Factor : 0.9
Lifetime : 50000H(L70)
CCT : 4000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : Dimmable
Dimming Range : 5-100%
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Dimensions : 260mmx154mm
Weight : 2.1 kg
Body : ADC

Type of Luminaire : Dimmable High Bay
Set Model No : NNFC20540DZ88
Type of Light Source : LED
Power Input : 85W
System Lumen Output : 11900 lm
System Efficacy : 140 lm/W
Power Voltage : 220-240V
Power Factor : 0.9
Lifetime : 50000H(L70)
CCT : 6500K
CRI : 80
Input Frequency : 50/60Hz
Dimming : Dimmable
Dimming Range : 5-100%
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Dimensions : 260mmx154mm
Weight : 2.1 kg
Body : ADC
