This Domae product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 1 protected poles and 2A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ue operational voltage is going from 230VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 71.5mm. The weight is 0.190kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.

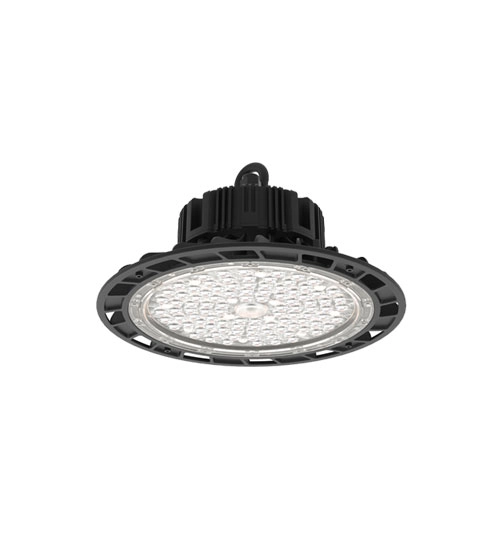

Type of Luminaire : Dimmable High Bay
Set Model No : NNFC20530DZ88
Type of Light Source : LED
Power Input : 85W
System Lumen Output : 11900 lm
System Efficacy : 140 lm/W
Power Voltage : 220-240V
Power Factor : 0.9
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : Dimmable
Dimming Range : 5-100%
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Dimensions : 260mmx154mm
Weight : 2.1 kg
Body : ADC

M18 TAL-0
• Dual Function: 360° Area Lighting, 90° Flood Lighting
• 2,200 Lumens of Task, Area, and Overhead Lighting
• High Impact Polycarbonate Lens

M12 PAL-0
• 700 Lumens of TRUEVIEW™ High Definition Output
• Up to 24 Hours of Run-time w/ 4.0Ah Battery (High: 8 Hrs, Low: 24 Hrs)
• 2.1 AMP USB Output for Device Charging
