Pneumatic Tools
Chicago Pneumatic CP6763/CP6773 Series - Impact Wrenches
Our 3/4" -1" high torque impact wrench CP6763/CP6773 Series is designed for the toughest environments and bolting applications. The twin hammer clutch mechanism, with aluminum body and steel clutch housing delivers a high power-to-weight ratio for demanding industrial environments. The motor provides up to 1630, 1760 Nm/1200, 1300 ft.lbs of max reverse torque. Available in 4 models: The 3/4" and 1" pistol handles feature a compact design and allow easy access due to the short side-to-center position.
Download
Products Lainnya
This impact wrench, designed to be the best tool for general maintenance with its torque of 450 ft.lbs / 610 Nm and its compactness of 4.4" / 112 mm, is highly recommended. Its jumbo hammer impact mechanism and metal housing offer high durability. The CP7731/CP7732 series is composed of 2 models: 3/8" short anvil and 1/2" short anvil.

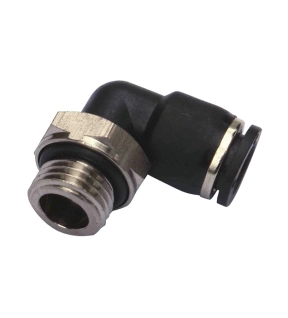

Elbow Connector to Male Taper
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.

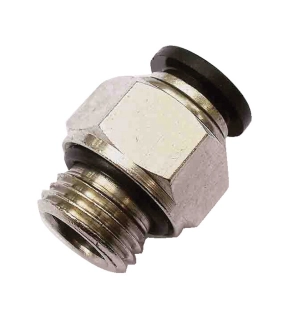

Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Available in three varying lengths and designed for professional use in garages and workshops, these rubber hose reels are designed to suit your various needs. They can be extended and stopped at any length with a controlled slow rewind which returns it at a safe speed. The auto layering mechanism distributes the hose evenly back into the reel housing to prevent jamming and the product also comes with a 180° swivel wall bracket for affixing to the wall. Possesses an inlet and outlet connection of 1/4" BSP.
Features and Benefits
• The hose is manufactured from a high quality rubber to ensure it has a long life and performs consistently over time
• Has a controlled rewind action which allows the hose to be reeled back at a safe speed
• Auto-layering mechanism prevents jamming of the hose as it returns to the reel and ensures it sits evenly
• Also includes a 180° pivoting wall bracket to give you the option of affixing the product to the wall
Typical Applications
• Ideal for professional use in workshops and garages to deliver both air and water to your desired item
Standards
• BS EN ISO 12100:2010
Features and Benefits
• The hose is manufactured from a high quality rubber to ensure it has a long life and performs consistently over time
• Has a controlled rewind action which allows the hose to be reeled back at a safe speed
• Auto-layering mechanism prevents jamming of the hose as it returns to the reel and ensures it sits evenly
• Also includes a 180° pivoting wall bracket to give you the option of affixing the product to the wall
Typical Applications
• Ideal for professional use in workshops and garages to deliver both air and water to your desired item
Standards
• BS EN ISO 12100:2010
IWS100X - 1" square drive. Suitable for industrial and commercial production and assembly applications. Side handle for two-handed operation. Top mounted spring balance loop. Easy to use forward/reverse switch and three position power regulator. Top venting exhaust. Oiling points for daily maintenance.
Bolt Capacity: M33
Working torque: 2,030 Nm
Maximum torque: 2,300Nm
Safe working pressure: 6.2bar / 90psi.
Air inlet thread: 1/2" NPT.
Minimum air hose size (ID): 1/2" (13mm).
Air pressure: 6.3bar/90 psi.
Air consumption: 7.0 cfm.
Sound pressure level: 96 dBA.
Sound power level: 101.67 dBA.
Vibration level: 6.0 m/s².
Overall length: 448mm.
Bolt Capacity: M33
Working torque: 2,030 Nm
Maximum torque: 2,300Nm
Safe working pressure: 6.2bar / 90psi.
Air inlet thread: 1/2" NPT.
Minimum air hose size (ID): 1/2" (13mm).
Air pressure: 6.3bar/90 psi.
Air consumption: 7.0 cfm.
Sound pressure level: 96 dBA.
Sound power level: 101.67 dBA.
Vibration level: 6.0 m/s².
Overall length: 448mm.
