Pneumatic Tools

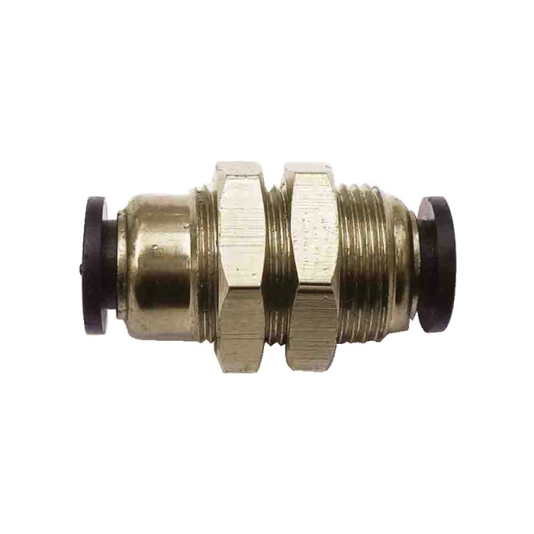

Kennedy KBH4 KEN-FIT 4mm MALE BULKHEAD TO 4mm
Bulkhead Adaptors
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Download
Produk Lainnya
‘Y’ Piece
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
This professional, straight air die grinder possesses a high specification that offers improved user comfort and maximum durability. This versatile air grinder is suitable for use with a wide range of abrasive stones and carbide burrs. With a compact design it is well suited to working in confined spaces and is best used to deburr, polish, blend and grind imperfections. Supplied with two collet spanners.
Features and Benefits
• Designed for continuous use
• 60mm short body Length allows better access to more confined areas
• Planetary gears for longer life and smoother running
• Low profile teasing throttle for precise speed control
• Rotating air inlet to prevent the air hose from tangling
• Vibration dampened rubber body provides improved user grip and comfort over longer periods of use
Typical Applications
• For use when grinding, deburring, buffing and polishing as well as cleaning and smoothing weld seams and castings
• Recommended for use with Tungsten Carbide Burrs, Mounted Points, Flap Wheels and Abrasive Bands
Notes
• Always ensure that the speed of the air tool never exceeds the maximum operating speed of the consumable
Features and Benefits
• Designed for continuous use
• 60mm short body Length allows better access to more confined areas
• Planetary gears for longer life and smoother running
• Low profile teasing throttle for precise speed control
• Rotating air inlet to prevent the air hose from tangling
• Vibration dampened rubber body provides improved user grip and comfort over longer periods of use
Typical Applications
• For use when grinding, deburring, buffing and polishing as well as cleaning and smoothing weld seams and castings
• Recommended for use with Tungsten Carbide Burrs, Mounted Points, Flap Wheels and Abrasive Bands
Notes
• Always ensure that the speed of the air tool never exceeds the maximum operating speed of the consumable
Connector to Female Parallel
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
B7444 - Suitable for production and assembly applications. Twin hammer mechanism. 1/2" square drive. Three position dial style speed regulator. Forward/reverse selection. Ergonomic and comfortable handle grip. Fixed inlet and exhaust.
Forward: position 1: 4000rpm, position 2: 5000rpm, position 3: 7000rpm.
Reverse: position 1: 3000rpm, position 2: 5000rpm, position 3: 7000rpm.
Square : 1/2"
Maximum torque: 813Nm
Recommended air pressure: 6.2bar/90psi.
Air consumption:(113ltr/min).
Air inlet thread: 1/4" NPT.
Minimum air hose size (ID): 10mm (3/8").
*Based on a 15 second cycle per minute average use.
Forward: position 1: 4000rpm, position 2: 5000rpm, position 3: 7000rpm.
Reverse: position 1: 3000rpm, position 2: 5000rpm, position 3: 7000rpm.
Square : 1/2"
Maximum torque: 813Nm
Recommended air pressure: 6.2bar/90psi.
Air consumption:(113ltr/min).
Air inlet thread: 1/4" NPT.
Minimum air hose size (ID): 10mm (3/8").
*Based on a 15 second cycle per minute average use.
