Pneumatic Tools

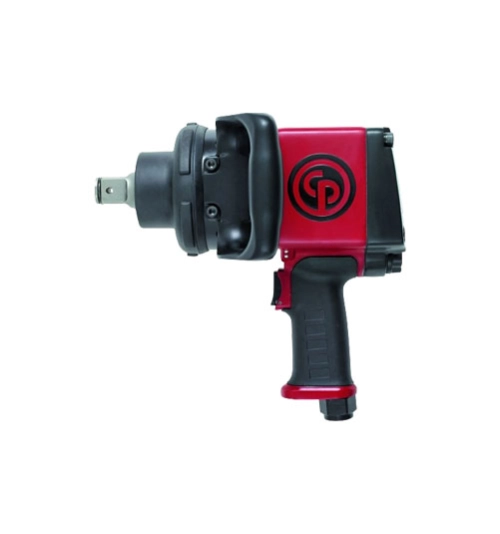

Chicago Pneumatic CP7776 Series - Impact Wrenches
For use in any general maintenance environment with the CP7776 1" impact wrench designed for bolting & unbolting applications. Delivers a reverse high torque up to 1,770 ft.lbs / 2,400 Nm. The pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. The CP7776 series is composed of 2 models: 1" short anvil and 1" long anvil (6" anvil).
Download
Produk Lainnya
Increased robustness thanks to the powerful 1-1/2" impact wrench, designed with oil bath twin hammer clutch mechanism, aluminium body, and clutch housing. With a maximum reverse torque of up to 3,900 Nm / 2,875 ft.lb., the CP6930-D35 is the ideal solution for maintenance applications. It is reversible and its steel trigger allows makes it easy to use in the bolting phases. The CP6930-D35 is equipped with a hole socket retainer for maximum safety.
To better serve its customers working in tire changing or maintenance applications, Chicago Pneumatic enhanced one of its ½” pneumatic impact wrench bestsellers: the CP7741 series (former CP7736 series). For operators looking for a powerful and durable tool with an affordable price, the CP7741 series, 1/2" pneumatic impact wrench, is the best in choice tool. This new series offers more robustness and durability than its old version. The motor, the gasket and plenty of parts have been improved to last longer.
Branch Tee to Male Taper
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
SR500
Highly effective, durable and compact speed ratchet, perfect for a wide range of applications.
Technical Information
• 1/2" square drive,
• M13 bolt capacity.
• Sound pressure Level: 89 db(A)
• Sound Power level: 89 db(A)
• Vibration: 4.0 m/s²
Features and Benefits
• Ball type retainer
• Disc type reversing action
• Very compact, lightweight design
• Ideal for automotive work
• front exhaust
Notes
• Free speed: 150rpm.
• Air inlet thread: 1/4" NPT.
• Minimum air hose size (ID): 10mm (3/8").
• Air pressure: 6.2bar/90psi.
• Air consumption: 4cfm* (1.88 l/s).
• Torque: 68 Nm
• Overall length: 265 mm.
*Based on a 15 second cycle per minute average use.
Highly effective, durable and compact speed ratchet, perfect for a wide range of applications.
Technical Information
• 1/2" square drive,
• M13 bolt capacity.
• Sound pressure Level: 89 db(A)
• Sound Power level: 89 db(A)
• Vibration: 4.0 m/s²
Features and Benefits
• Ball type retainer
• Disc type reversing action
• Very compact, lightweight design
• Ideal for automotive work
• front exhaust
Notes
• Free speed: 150rpm.
• Air inlet thread: 1/4" NPT.
• Minimum air hose size (ID): 10mm (3/8").
• Air pressure: 6.2bar/90psi.
• Air consumption: 4cfm* (1.88 l/s).
• Torque: 68 Nm
• Overall length: 265 mm.
*Based on a 15 second cycle per minute average use.
