Pneumatic Tools

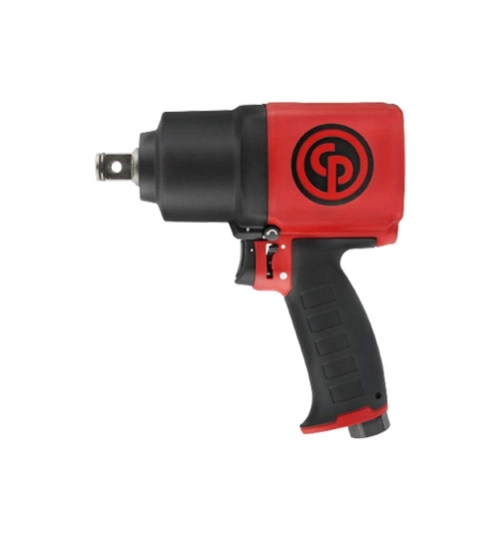

Chicago Pneumatic CP7769/CP7779 Series - Impact Wrenches
Designed for general maintenance, these 3/4" and 1" impact wrenches are comfortable and efficient to use in workshop environment thanks to their one-hand power control and forward / reverse selector - S2S technology. With its maximum torque in reverse up to 1,440 ft.lbs / 1,950 Nm, the CP7769 series offers high productivity. In addition, the twin hammer impact mechanism and its composite housing offer high durability while being both lightweight and compact. The CP7769 / CP7779 series is composed of 3 models: 3/4" short anvil, 3/4" long anvil (6" anvil) and 1" short anvil.
Download
Produk Lainnya
Stem Reducers
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.

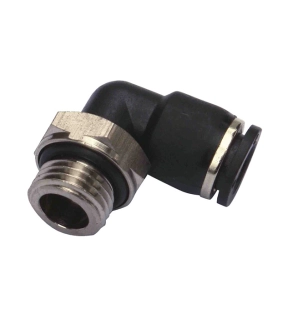

Elbow Connector
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
B7444 - Suitable for production and assembly applications. Twin hammer mechanism. 1/2" square drive. Three position dial style speed regulator. Forward/reverse selection. Ergonomic and comfortable handle grip. Fixed inlet and exhaust.
Forward: position 1: 4000rpm, position 2: 5000rpm, position 3: 7000rpm.
Reverse: position 1: 3000rpm, position 2: 5000rpm, position 3: 7000rpm.
Square : 1/2"
Maximum torque: 813Nm
Recommended air pressure: 6.2bar/90psi.
Air consumption:(113ltr/min).
Air inlet thread: 1/4" NPT.
Minimum air hose size (ID): 10mm (3/8").
*Based on a 15 second cycle per minute average use.
Forward: position 1: 4000rpm, position 2: 5000rpm, position 3: 7000rpm.
Reverse: position 1: 3000rpm, position 2: 5000rpm, position 3: 7000rpm.
Square : 1/2"
Maximum torque: 813Nm
Recommended air pressure: 6.2bar/90psi.
Air consumption:(113ltr/min).
Air inlet thread: 1/4" NPT.
Minimum air hose size (ID): 10mm (3/8").
*Based on a 15 second cycle per minute average use.
Elbow Connector to Male Parallel
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
