Pneumatic Tools

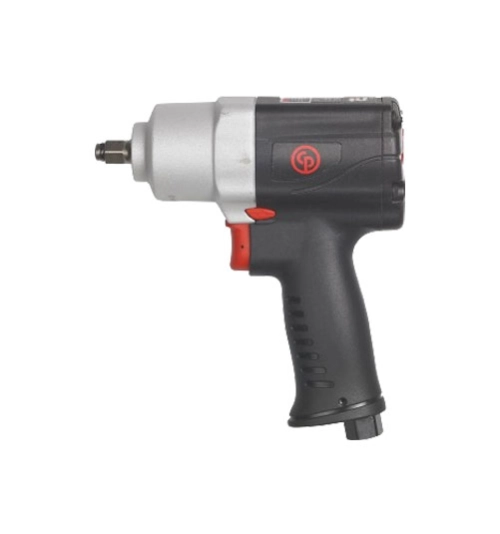

Chicago Pneumatic CP7729/CP7739 Series - Impact Wrenches
A range designed for general maintenance with its Side-2-Side reverse / forward technology. Its twin hammer impact mechanism and its composite housing offer high durability. High productivity is ensured with a torque of 450 ft.lbs / 610 Nm. The CP7729/CP7739 series is composed of 2 models: 3/8" short anvil and 1/2" short anvil.
Download
Produk Lainnya
IWS100X - 1" square drive. Suitable for industrial and commercial production and assembly applications. Side handle for two-handed operation. Top mounted spring balance loop. Easy to use forward/reverse switch and three position power regulator. Top venting exhaust. Oiling points for daily maintenance.
Bolt Capacity: M33
Working torque: 2,030 Nm
Maximum torque: 2,300Nm
Safe working pressure: 6.2bar / 90psi.
Air inlet thread: 1/2" NPT.
Minimum air hose size (ID): 1/2" (13mm).
Air pressure: 6.3bar/90 psi.
Air consumption: 7.0 cfm.
Sound pressure level: 96 dBA.
Sound power level: 101.67 dBA.
Vibration level: 6.0 m/s².
Overall length: 448mm.
Bolt Capacity: M33
Working torque: 2,030 Nm
Maximum torque: 2,300Nm
Safe working pressure: 6.2bar / 90psi.
Air inlet thread: 1/2" NPT.
Minimum air hose size (ID): 1/2" (13mm).
Air pressure: 6.3bar/90 psi.
Air consumption: 7.0 cfm.
Sound pressure level: 96 dBA.
Sound power level: 101.67 dBA.
Vibration level: 6.0 m/s².
Overall length: 448mm.
IW500 - 1/2" Impact Wrench
One piece aluminium housing, 10 position power regulator, thumb switch for reversing, 1/4" NPT air inlet thread for 10mm air hose, 90psi air pressure, 300ft/lbs torque, 3.5cfm* air consumption.
Features and Benefits
• Highly efficient
• Durable aluminum design
• M16 bolt capacity
Notes
• Sound pressure level: 88dBA
• Vibration level: 4.2m/s²
• Overall length: 188mm
*Based on a 15 second cycle per minute average use
One piece aluminium housing, 10 position power regulator, thumb switch for reversing, 1/4" NPT air inlet thread for 10mm air hose, 90psi air pressure, 300ft/lbs torque, 3.5cfm* air consumption.
Features and Benefits
• Highly efficient
• Durable aluminum design
• M16 bolt capacity
Notes
• Sound pressure level: 88dBA
• Vibration level: 4.2m/s²
• Overall length: 188mm
*Based on a 15 second cycle per minute average use
Designed for tire changing applications with a torque limited in forward to 60-70 ft. Lbs / 90-140 Nm and a maximum torque in reverse of 920 ft.lbs / 1,250 Nm, the CP7748TL series limits the risk of over tightening during the tightening phase while also being very powerful when nuts or bolts have to be removed. In addition, the new forward/reverse system & power control (ring system) increase operator comfort while also improving functionality. The CP7748TL Series is composed of 2 models: 1/2" short anvil and 1/2" long anvil (2" anvil)
Connector to Male Taper
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
