‘Y’ Piece


Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.


Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.

Optimal fastening and unbolting processes with this ultra lightweight 1" impact wrench. Featuring a pinless closed reinforced rocking dog impact mechanism and metal housing, this tool is designed to optimise tire changing. It delivers a maximum reverse torque up to 1,770 ft.lbs / 2,400 N. The CP7783 series consists of 2 models: 1" short anvil and 1" long anvil (6" anvil).

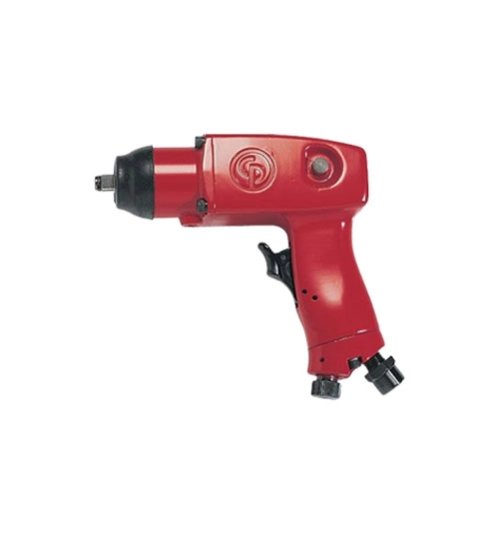

This impact wrench, designed to be the best tool for general maintenance with its torque of 450 ft.lbs / 610 Nm and its compactness of 4.4" / 112 mm, is highly recommended. Its jumbo hammer impact mechanism and metal housing offer high durability. The CP7731/CP7732 series is composed of 2 models: 3/8" short anvil and 1/2" short anvil.

SR500
Highly effective, durable and compact speed ratchet, perfect for a wide range of applications.

Technical Information
• 1/2" square drive,
• M13 bolt capacity.
• Sound pressure Level: 89 db(A)
• Sound Power level: 89 db(A)
• Vibration: 4.0 m/s²

Features and Benefits
• Ball type retainer
• Disc type reversing action
• Very compact, lightweight design
• Ideal for automotive work
• front exhaust

Notes
• Free speed: 150rpm.
• Air inlet thread: 1/4" NPT.
• Minimum air hose size (ID): 10mm (3/8").
• Air pressure: 6.2bar/90psi.
• Air consumption: 4cfm* (1.88 l/s).
• Torque: 68 Nm
• Overall length: 265 mm.

*Based on a 15 second cycle per minute average use.
