IWS100X - 1" square drive. Suitable for industrial and commercial production and assembly applications. Side handle for two-handed operation. Top mounted spring balance loop. Easy to use forward/reverse switch and three position power regulator. Top venting exhaust. Oiling points for daily maintenance.

Bolt Capacity: M33
Working torque: 2,030 Nm
Maximum torque: 2,300Nm
Safe working pressure: 6.2bar / 90psi.
Air inlet thread: 1/2" NPT.
Minimum air hose size (ID): 1/2" (13mm).
Air pressure: 6.3bar/90 psi.
Air consumption: 7.0 cfm.
Sound pressure level: 96 dBA.
Sound power level: 101.67 dBA.
Vibration level: 6.0 m/s².
Overall length: 448mm.

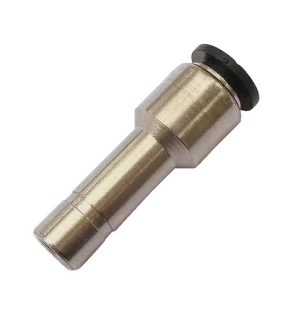

Connector to Male Parallel


Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.


Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.

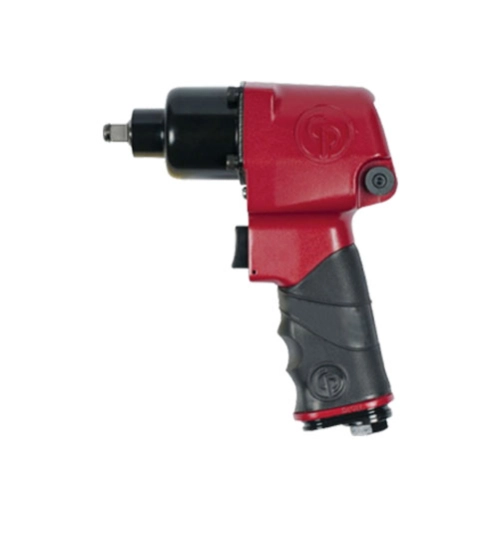

This impact wrench series designed for tight applications and is highly recommended. Its rocking dog impact mechanism and metal motor housing offer high durability. High productivity is ensured with a torque of 90 ft.lbs / 122 Nm.

Widely used for fixing pipes and cables in all industries.





Features and Benefits


• Zinc plated to protect against corrosion


• Durable steel base material


• Available in a comprehensive range of sizes





Standards


• DIN 72571
