Measuring Tools

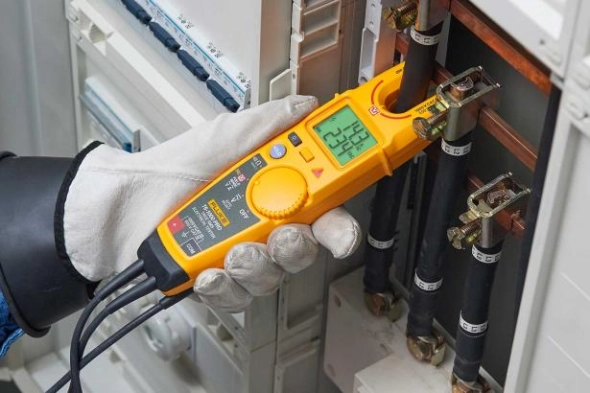

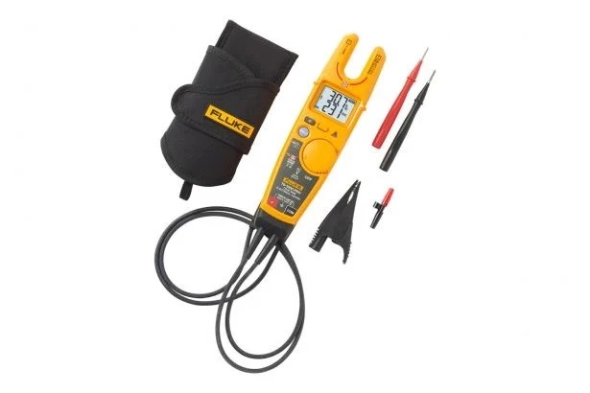

Fluke T6-1000 PRO Electrical Tester
• Save time by seeing voltage and current measurements at the same time

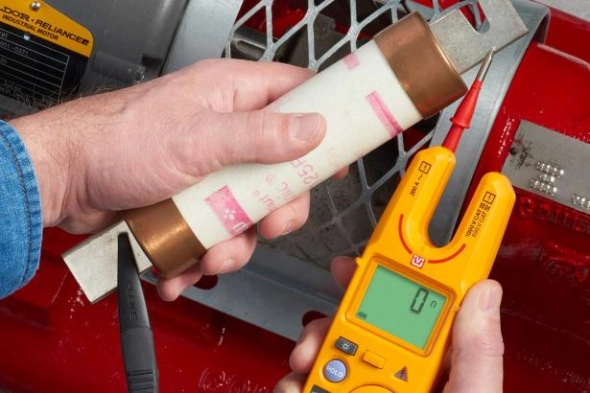

• Visual Continuity™ – the screen automatically turns green for continuity, perfect when it’s too loud to hear the beeper

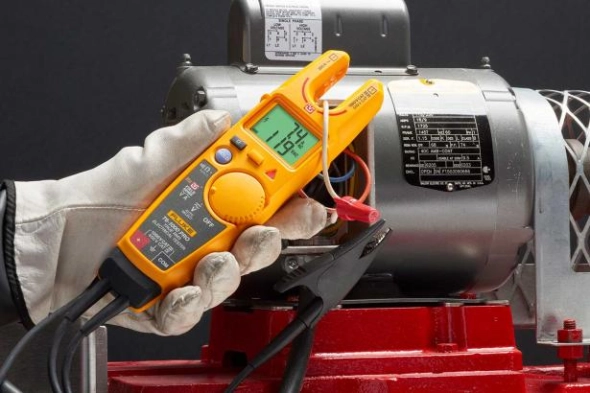

• FieldSense™ technology for ac voltage, current and frequency, all without making electrical contact to live voltage
• Visual Continuity™ – the screen automatically turns green for continuity, perfect when it’s too loud to hear the beeper
• FieldSense™ technology for ac voltage, current and frequency, all without making electrical contact to live voltage
Download
Produk Lainnya
Get ready for anything.
The Fluke 376 Clamp Meter offers improved performance for a wide range of flow size situations. With true-rms voltage and current rating, the Fluke 376 can read up to 1000 V and 1000 A in both ac and dc modes.
In addition, the Fluke 376 includes an iFlex™ flexible current probe that extends the measuring range to 2500 A ac while providing increased display flexibility, the ability to measure odd-sized conductors and increased cable access. The Fluke 376 is a direct replacement for the Fluke 337 Clamp Meter.
The Fluke 376 Clamp Meter offers improved performance for a wide range of flow size situations. With true-rms voltage and current rating, the Fluke 376 can read up to 1000 V and 1000 A in both ac and dc modes.
In addition, the Fluke 376 includes an iFlex™ flexible current probe that extends the measuring range to 2500 A ac while providing increased display flexibility, the ability to measure odd-sized conductors and increased cable access. The Fluke 376 is a direct replacement for the Fluke 337 Clamp Meter.
The 87V MAX contains all the trusted features of the most popular DMM in use today, the Fluke 87V, with many more extras.
Withstands drops of up to 4 meters (13 feet)
Fluke's most rugged digital multimeter. The 87V MAX features a rugged case for industrial use and a removable holster. This holster also doubles as a test probe holder for one-handed operation.
IP67 rated
Completely waterproof and dustproof, to work reliably anywhere you need to work.
Heat and cold resistant
This meter has a longer operating temperature range from -40 °C (for up to 20 minutes) to +55 °C.
Another product highlight
- True-rms ac current and voltage for accurate measurements on non-linear signals
- Measures up to 1000 V ac and dc
- Measures up to 10 A (20 A for 30 seconds)
- Frequency up to 200 kHz
- Built-in thermometer allows you to freely take temperature readings without having to carry a separate instrument
- Min/Max/Average recording, plus 250 µs Peak min-max to record variations automatically
- Unique function for accurate measurement of voltage and frequency in variable frequency motor drives and other electrically noisy equipment
- Large digit display, 2 brightness levels, white backlight, and backlit keypad keys for better visibility
- High resolution 19,999 digit mode display
- Long lasting battery life (800 hours)
Withstands drops of up to 4 meters (13 feet)
Fluke's most rugged digital multimeter. The 87V MAX features a rugged case for industrial use and a removable holster. This holster also doubles as a test probe holder for one-handed operation.
IP67 rated
Completely waterproof and dustproof, to work reliably anywhere you need to work.
Heat and cold resistant
This meter has a longer operating temperature range from -40 °C (for up to 20 minutes) to +55 °C.
Another product highlight
- True-rms ac current and voltage for accurate measurements on non-linear signals
- Measures up to 1000 V ac and dc
- Measures up to 10 A (20 A for 30 seconds)
- Frequency up to 200 kHz
- Built-in thermometer allows you to freely take temperature readings without having to carry a separate instrument
- Min/Max/Average recording, plus 250 µs Peak min-max to record variations automatically
- Unique function for accurate measurement of voltage and frequency in variable frequency motor drives and other electrically noisy equipment
- Large digit display, 2 brightness levels, white backlight, and backlit keypad keys for better visibility
- High resolution 19,999 digit mode display
- Long lasting battery life (800 hours)
Accurate enough for lab use, and rugged and portable enough to take anywhere
• Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
• Immersion depth to 203 mm (8 in)
• Optional ITS-90 reference input reads PRTs to ±0.006 °C
• Temperature range from –45 °C to 700 °C
Every once in a while, a new product comes around that changes the rules. It happened when we introduced handheld dry-wells. It happened when we introduced Micro-Baths. Now we’ve combined bath-level performance with dry-well functionality and legitimate reference thermometry to create Metrology Wells.
With groundbreaking new proprietary electronics from Fluke Calibration's (patents pending), Metrology Wells let you bring lab-quality performance into whatever field environment you might work in. New analog and digital control techniques provide stability as good as ±0.005 °C. And with dual-zone control, axial (or “vertical") uniformity is as good as ±0.02 °C over a 60 mm (2.36 in) zone. (That’s 60 mm!) Such performance doesn’t exist anywhere else outside of fluid baths.
In short, there are six critical components of performance in an industrial heat source (which the European metrology community explains, for example, in the document EA-10/13): calibrated display accuracy, stability, axial (vertical) uniformity, radial (well-to-well) uniformity, impact from loading, and hysteresis. We added a seventh in the form of a legitimate reference thermometer input and created an entirely new product category: Metrology Wells.
(By the way, Metrology Wells are the only products on the market supported by published specifications addressing every performance category in the EA-10/13. Our specs aren’t just hopes or guidelines. They apply to every Metrology Well we sell.)
• Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
• Immersion depth to 203 mm (8 in)
• Optional ITS-90 reference input reads PRTs to ±0.006 °C
• Temperature range from –45 °C to 700 °C
Every once in a while, a new product comes around that changes the rules. It happened when we introduced handheld dry-wells. It happened when we introduced Micro-Baths. Now we’ve combined bath-level performance with dry-well functionality and legitimate reference thermometry to create Metrology Wells.
With groundbreaking new proprietary electronics from Fluke Calibration's (patents pending), Metrology Wells let you bring lab-quality performance into whatever field environment you might work in. New analog and digital control techniques provide stability as good as ±0.005 °C. And with dual-zone control, axial (or “vertical") uniformity is as good as ±0.02 °C over a 60 mm (2.36 in) zone. (That’s 60 mm!) Such performance doesn’t exist anywhere else outside of fluid baths.
In short, there are six critical components of performance in an industrial heat source (which the European metrology community explains, for example, in the document EA-10/13): calibrated display accuracy, stability, axial (vertical) uniformity, radial (well-to-well) uniformity, impact from loading, and hysteresis. We added a seventh in the form of a legitimate reference thermometer input and created an entirely new product category: Metrology Wells.
(By the way, Metrology Wells are the only products on the market supported by published specifications addressing every performance category in the EA-10/13. Our specs aren’t just hopes or guidelines. They apply to every Metrology Well we sell.)
Software Features
- “In-workshop” or “in-the-field” setup and download through PC application software: simple download using USB memory stick, WiFi download, wired ethernet connection or via USB cable.
- Energy Analyze plus application software: Download and analyze every measured detail of energy consumption and power quality state-of-health with automated reporting.
- One-touch reporting: Create standardized reports according to commonly used standards like EN 50160, IEEE 519, GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software.
Advanced analysis: Choose any available logged parameter to create a highly customized view of logged measurements for - advanced correlation of data.
Hardware Features
- Measure all three voltage and current phases plus the neutral current: Three-phase and neutral voltage leads and four flexible current probes.
- Comprehensive logging: More than 20 separate logging sessions can be stored in the instrument. A comprehensive range of power and power quality variables are automatically logged so you never lose measurement trends.
- Measure with premium accuracy: Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods.’
- Capture dips, swells and interruptions: The 1748 includes event waveform capture and RMS event profile, along with date, timestamp and severity information to help pinpoint potential root causes of power quality issues.
- Measure key power quality parameters: Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
- Optimized user interface: Capture the right data every time with quick, guided, graphical PC based application setup and reduce uncertainty about your connections with an intelligent verification feature and the only auto-correction function for a power quality logger. Connection errors are automatically indicated via an amber light on the units power button which turns green once corrected.
- Optimized user interface: Quick, guided, graphical setup ensures you’re capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
- Flexible power supply: Powers directly from the measured circuit with the widest available range for a power quality logger automatically going from 100 V to 500 V or from a wall line cord, so you can test anywhere.
- and reliable: Designed to withstand harsh installation environments with IP65 rating when used with IP65 voltage input adapter.
- Two external USB ports: One for PC connection and another for quick, simple data download to standard USB thumb drives, or other USB devices, allowing you to leave the measurement device in place without disrupting logging.
- Ethernet connectivity: Wired and wireless connections for instrument setup and high-speed data download.
- Compact size: Designed to fit in tight spaces and panels with small 23 cm x 18 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in) footprint.
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream.
- Optimized measurement accessories: Unique tangle-free flat voltage cable and thin flexible current probes ensure easy installation even in tight spaces.
- Battery life: Four-hour operating time (backup time) per charge on lithium-ion battery to withstand temporary power disruptions.
- Security: Safeguard your best asset from theft with a standard chain or other security device.
- Magnetic hanger kit: Conveniently stow the instrument safely inside or outside of electrical panels; compatible with all models and included with 1748 model as standard.
- “In-workshop” or “in-the-field” setup and download through PC application software: simple download using USB memory stick, WiFi download, wired ethernet connection or via USB cable.
- Energy Analyze plus application software: Download and analyze every measured detail of energy consumption and power quality state-of-health with automated reporting.
- One-touch reporting: Create standardized reports according to commonly used standards like EN 50160, IEEE 519, GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software.
Advanced analysis: Choose any available logged parameter to create a highly customized view of logged measurements for - advanced correlation of data.
Hardware Features
- Measure all three voltage and current phases plus the neutral current: Three-phase and neutral voltage leads and four flexible current probes.
- Comprehensive logging: More than 20 separate logging sessions can be stored in the instrument. A comprehensive range of power and power quality variables are automatically logged so you never lose measurement trends.
- Measure with premium accuracy: Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods.’
- Capture dips, swells and interruptions: The 1748 includes event waveform capture and RMS event profile, along with date, timestamp and severity information to help pinpoint potential root causes of power quality issues.
- Measure key power quality parameters: Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
- Optimized user interface: Capture the right data every time with quick, guided, graphical PC based application setup and reduce uncertainty about your connections with an intelligent verification feature and the only auto-correction function for a power quality logger. Connection errors are automatically indicated via an amber light on the units power button which turns green once corrected.
- Optimized user interface: Quick, guided, graphical setup ensures you’re capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
- Flexible power supply: Powers directly from the measured circuit with the widest available range for a power quality logger automatically going from 100 V to 500 V or from a wall line cord, so you can test anywhere.
- and reliable: Designed to withstand harsh installation environments with IP65 rating when used with IP65 voltage input adapter.
- Two external USB ports: One for PC connection and another for quick, simple data download to standard USB thumb drives, or other USB devices, allowing you to leave the measurement device in place without disrupting logging.
- Ethernet connectivity: Wired and wireless connections for instrument setup and high-speed data download.
- Compact size: Designed to fit in tight spaces and panels with small 23 cm x 18 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in) footprint.
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream.
- Optimized measurement accessories: Unique tangle-free flat voltage cable and thin flexible current probes ensure easy installation even in tight spaces.
- Battery life: Four-hour operating time (backup time) per charge on lithium-ion battery to withstand temporary power disruptions.
- Security: Safeguard your best asset from theft with a standard chain or other security device.
- Magnetic hanger kit: Conveniently stow the instrument safely inside or outside of electrical panels; compatible with all models and included with 1748 model as standard.
