Cylindrical-End Cutting
All sizes are nominal with a 6mm shank unless other wise stated.

Cut Numbers:

Cut 3 - Rapid Cut.
for use on softer non ferrous and plastic materials, i.e aluminium, fibreglass, plastics, hard rubber and zinc alloy,

Cut 6 - Double Cut.
Crosscut and double cut to improve control and chipbreaks. Manufactured from high grade tungsten carbide for general-purpose use.

Cut 9 - Chipbreaker
Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron.

Suitable for deburring and polishing of cast iron, cast steel, carbon steel, alloy steel and stainless steel etc.
up to HRC65 hardness.

Please note:
• Work piece and tools should always be steady and well supported.
• Carbide burrs are not suitable for 'milling' large amounts of material, they are for light stock removal and high revolutions 'LOW FEED - HIGH SPEED'.
• Always ensure that at least 70% of the shank length is clamped by the collet or chuck of the tool being used.
• Always ensure that the tool is rated to the recommended operating speed of the burr.

Recommended for simple, low cost removal of broken screws and bolts, these 4 and 6 piece sets from Kennedy are the ideal way to extract screws. designed to remove broken screws without damaging the threads of the component, each set has varying sizes to ensure you find the right size based on your needs.

Features and Benefits
• Available as a 4 or 6 piece set to sllow you to select the product most relevant to your needs
• An economic, easy way to replace broken screws without damaging the component
• Packaging has easy read labeling to inform you of the recommended drill size to fit the extractor best
• Sizes compatible with drills are as follows (in), no.1 - 5/64, no.2 - 7/64, no.3 - 5/32, no.4 - 1/4, no.5 - 19/64, no.6 - 13/32

Contents
• 4 Piece Set Sizes: No. 2, 3, 4 and 5
• 6 Piece Set Sizes: No. 1, 2, 3, 4, 5 and 6

Typical Applications
• Ideal for removing broken or damaged screws from materials without damaging the thread

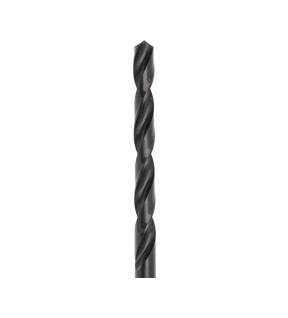

The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118° point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. The coating also helps reduce the risk of the tool staining.

Features and Benefits
• High speed steel construction for increased tool durability
• Point angle of 118° for precise holemaking and precision cutting
• Black oxide coating helps aid chip flow, reduce heat and prevent staining
• Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite

Typical Applications
• Cutting and drilling
• Ferrous materials
• Steel
• Iron
• Nickel
• Brass
• Aluminium alloy
• Graphite

Notes
• Available in sizes 0.25mm -20.00mm

Standards
• Manufactured to BS 328/DIN338RN

SwissBurr hand deburring tools are a fast effective and efficient way of deburring holes, slots and edges. Swiss Burr is a totally modular system of interchangeable handles, holders and blades designed to cover all applications. A choice of HSS or carbide blades, countersinks and scrapers are available to suit your specific application. Swiss Burr blades are also interchangeable with commonly available brands including Kennedy, Noga, Ruko, Seco, Snap-Tap and Stellram.

F12 - HSS countersink for hole edges up to 12mm dia.
F20 - HSS countersink for hole edges up to 20mm dia.
F30 - HSS countersink for hole edges up to 30mm dia.
