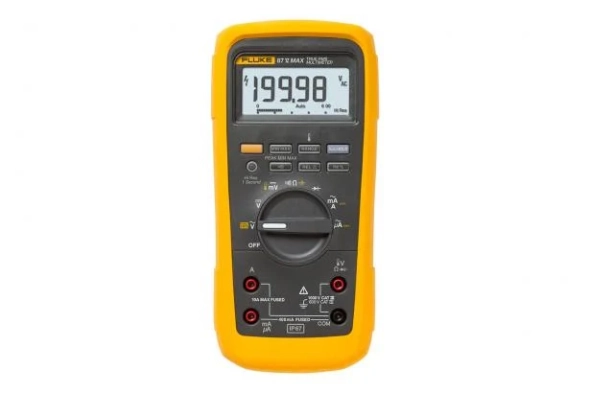

Fluke 87V MAX True-rms Digital Multimeter
The 87V MAX contains all the trusted features of the most popular DMM in use today, the Fluke 87V, with many more extras.
Withstands drops of up to 4 meters (13 feet)
Fluke's most rugged digital multimeter. The 87V MAX features a rugged case for industrial use and a removable holster. This holster also doubles as a test probe holder for one-handed operation.

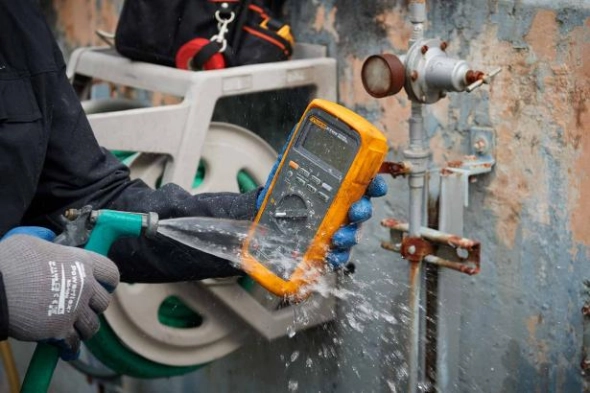

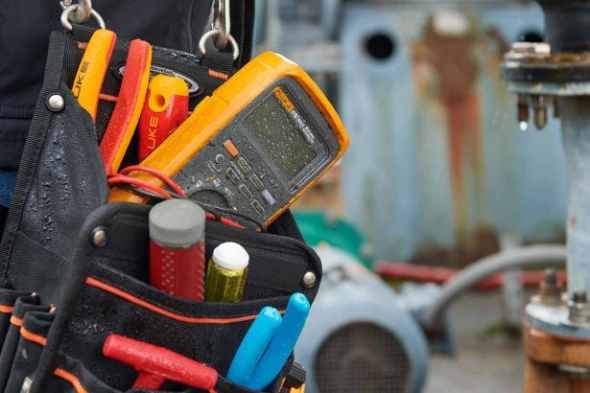

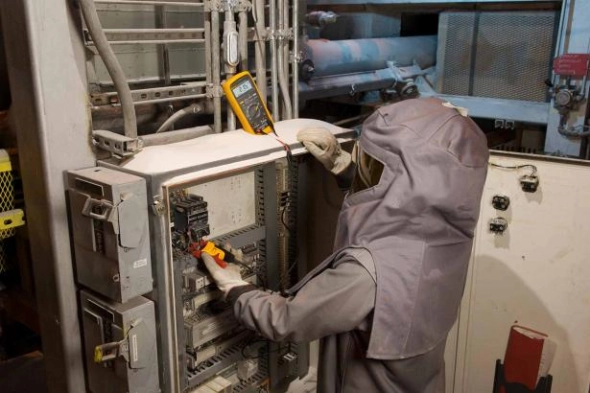

IP67 rated
Completely waterproof and dustproof, to work reliably anywhere you need to work.
Heat and cold resistant
This meter has a longer operating temperature range from -40 °C (for up to 20 minutes) to +55 °C.
Another product highlight
- True-rms ac current and voltage for accurate measurements on non-linear signals
- Measures up to 1000 V ac and dc
- Measures up to 10 A (20 A for 30 seconds)
- Frequency up to 200 kHz
- Built-in thermometer allows you to freely take temperature readings without having to carry a separate instrument
- Min/Max/Average recording, plus 250 µs Peak min-max to record variations automatically
- Unique function for accurate measurement of voltage and frequency in variable frequency motor drives and other electrically noisy equipment
- Large digit display, 2 brightness levels, white backlight, and backlit keypad keys for better visibility
- High resolution 19,999 digit mode display
- Long lasting battery life (800 hours)
Withstands drops of up to 4 meters (13 feet)
Fluke's most rugged digital multimeter. The 87V MAX features a rugged case for industrial use and a removable holster. This holster also doubles as a test probe holder for one-handed operation.
IP67 rated
Completely waterproof and dustproof, to work reliably anywhere you need to work.
Heat and cold resistant
This meter has a longer operating temperature range from -40 °C (for up to 20 minutes) to +55 °C.
Another product highlight
- True-rms ac current and voltage for accurate measurements on non-linear signals
- Measures up to 1000 V ac and dc
- Measures up to 10 A (20 A for 30 seconds)
- Frequency up to 200 kHz
- Built-in thermometer allows you to freely take temperature readings without having to carry a separate instrument
- Min/Max/Average recording, plus 250 µs Peak min-max to record variations automatically
- Unique function for accurate measurement of voltage and frequency in variable frequency motor drives and other electrically noisy equipment
- Large digit display, 2 brightness levels, white backlight, and backlit keypad keys for better visibility
- High resolution 19,999 digit mode display
- Long lasting battery life (800 hours)
