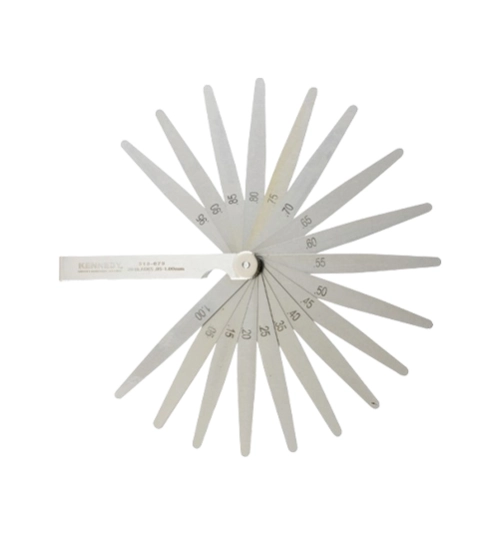

Kennedy 4" 20 BLADE METRIC FEELER GAUGE
With Hardened and polished taper blades, enclosed in a steel case metric feeler blades from Kennedy are clearly marked for easy identification.
Features and Benefits
• Hardened and polished taper blades, enclosed in a steel case
• Blades are clearly marked for easy identification
Standards
• Manufactured to DIN 2275
Typical Applications
• Mechanical
• Engineering
Notes
• Range: 10 Blade: .05 - .80mm. 13 and 20 Blade: .05 - 1mm
Features and Benefits
• Hardened and polished taper blades, enclosed in a steel case
• Blades are clearly marked for easy identification
Standards
• Manufactured to DIN 2275
Typical Applications
• Mechanical
• Engineering
Notes
• Range: 10 Blade: .05 - .80mm. 13 and 20 Blade: .05 - 1mm
