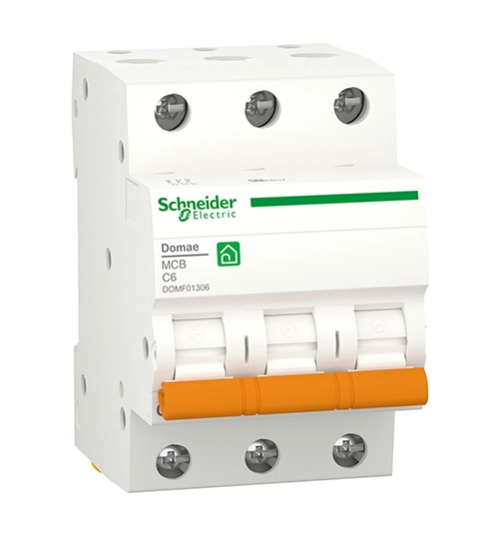

Schneider Miniature circuit breaker, Domae, 3P, 6 A, C Curve, 6000 A
This Domae product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 6A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 400VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ue operational voltage is going from 400VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 81mm x (D) 71.5mm. The weight is 0.285kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.
Download
Products Lainnya
2 lights in 1: 5W COB as a work/ inspection light and 1 LED light in the top as a torch.
Features and Benefits
• 1 x Li-ion battery (included)
• ABS plastic with rubberised finish
• Beam distance: 20m
• Foldaway hanging hook
• USB and micro USB ports
• Includes USB charging cable 1.5m
• Integrated magnet on the back
• Adjustable magnetic base
• Working time: 3-4 hrs
• Charge time: 5-6 hrs
• Impact Resistance (drop test) 1m
• Operating temperature -20 - 50°C
• IPX-4 waterproof and designed for outside use in heavy rain
Features and Benefits
• 1 x Li-ion battery (included)
• ABS plastic with rubberised finish
• Beam distance: 20m
• Foldaway hanging hook
• USB and micro USB ports
• Includes USB charging cable 1.5m
• Integrated magnet on the back
• Adjustable magnetic base
• Working time: 3-4 hrs
• Charge time: 5-6 hrs
• Impact Resistance (drop test) 1m
• Operating temperature -20 - 50°C
• IPX-4 waterproof and designed for outside use in heavy rain
M18 SAL-0
• Three light output modes for optimal brightness and runtime
• High Mode: 2,000 lumens for up to 4 hours with M18™ XC 5.0 Pack
• Medium Mode: 1,300 lumens for up to 6 hours with M18™ XC 5.0 Pack
• Three light output modes for optimal brightness and runtime
• High Mode: 2,000 lumens for up to 4 hours with M18™ XC 5.0 Pack
• Medium Mode: 1,300 lumens for up to 6 hours with M18™ XC 5.0 Pack
M12 UHL-0
• 1,350 lumens of TRUEVIEW™ High Definition output
• MILWAUKEE"s FINISHGUARD™ hooks provide lasting protection against scratches to a vehicle"s finish
• 2X more gripping surface for maximum hold
• 1,350 lumens of TRUEVIEW™ High Definition output
• MILWAUKEE"s FINISHGUARD™ hooks provide lasting protection against scratches to a vehicle"s finish
• 2X more gripping surface for maximum hold
This Domae product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 1 protected poles and 2A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ue operational voltage is going from 230VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 71.5mm. The weight is 0.190kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.
