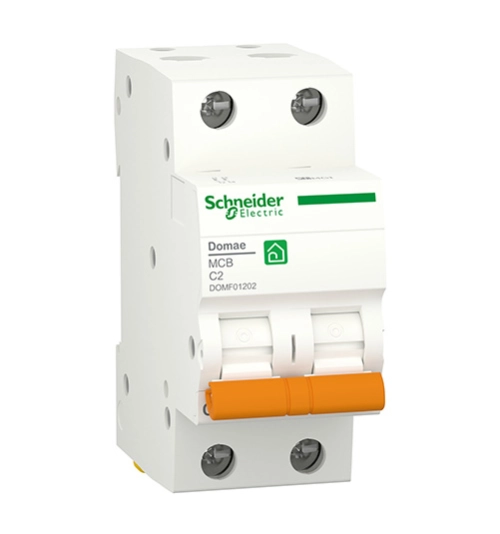

Schneider Miniature circuit breaker, Domae, 2P, 2 A, C Curve, 6000 A
This Domae product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 1 protected poles and 2A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ue operational voltage is going from 230VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 71.5mm. The weight is 0.190kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.
Download
Products Lainnya
Type of Luminaire : Smart Street Light
Set Model No : NSP10460LR
Type of Light Source : LED
Power Input : 60W
System Lumen Output : 9000 lm
System Efficacy : 150 lm/W
Lifetime : 50000H(L70)
CCT: 5000K
CRI : 70
Dimming : non-Dimmable
Glare Cut Angle : 32deg.
Beam Angle : 117deg.
IP Rating : 66
Ambient Temperature : 5 - 40°C
Dimensions : 625mmx1944mmx269mm
Body : ADC & Aluminium Extrution
Set Model No : NSP10460LR
Type of Light Source : LED
Power Input : 60W
System Lumen Output : 9000 lm
System Efficacy : 150 lm/W
Lifetime : 50000H(L70)
CCT: 5000K
CRI : 70
Dimming : non-Dimmable
Glare Cut Angle : 32deg.
Beam Angle : 117deg.
IP Rating : 66
Ambient Temperature : 5 - 40°C
Dimensions : 625mmx1944mmx269mm
Body : ADC & Aluminium Extrution
M12 SAL-0
• Light head rotates 210° and pivots 270° for light in any direction
• Collapses down to 78cm with three side handles for easy transportation and storage
• Sets up in 5 seconds, Three height positions; 90cm, 127cm & 173cm
• Light head rotates 210° and pivots 270° for light in any direction
• Collapses down to 78cm with three side handles for easy transportation and storage
• Sets up in 5 seconds, Three height positions; 90cm, 127cm & 173cm
This LED head torch can deliver an output of 120 lumens which can illuminate up to 115 meters away. The sturdy headlamp body tilts up to 90 degrees, allowing you to focus the light where it's required. Fully rechargeable.
Features and Benefits
• 3 working modes: Full power, half power and flashing to suit your needs
• Rechargeable Li-on Battery included
• 1.5 metre USB charging cable included to recharge as needed
• Impact resistance (drop test) 1m making for a robust product
• Operating temperature of -20 - 50°C for versatility in use
• IPX-4 waterproof and designed for use outdoors in heavy rain
Features and Benefits
• 3 working modes: Full power, half power and flashing to suit your needs
• Rechargeable Li-on Battery included
• 1.5 metre USB charging cable included to recharge as needed
• Impact resistance (drop test) 1m making for a robust product
• Operating temperature of -20 - 50°C for versatility in use
• IPX-4 waterproof and designed for use outdoors in heavy rain
Type of Luminaire : High Efficacy/Standard High Bay
Set Model No : NYV20102BE1A
Type of Light Source LED
Power Input : 140W
System Lumen Output : 20000 lm
System Efficacy : 143 lm/W
Power Voltage : 220-240V
Power Factor : 0.95
Lifetime : 50000H(L70)
CCT : 4000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Surge Protection : 10kVA
Dimensions : 280mmx172mm
Weight : 2.8 kg
Body : ADC(Black)
Set Model No : NYV20102BE1A
Type of Light Source LED
Power Input : 140W
System Lumen Output : 20000 lm
System Efficacy : 143 lm/W
Power Voltage : 220-240V
Power Factor : 0.95
Lifetime : 50000H(L70)
CCT : 4000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Surge Protection : 10kVA
Dimensions : 280mmx172mm
Weight : 2.8 kg
Body : ADC(Black)
