Designed for heavy tire changing applications with its torque limited in forward of 370 ft.lbs / 500 Nm and its maximum torque in reverse of 1,920 ft.lbs / 2,600Nm, the 1" impact wrench CP7782TL series limits the risk of over tightening during the tightening phase, while at the same time being very powerful once nuts or bolts have to be removed. In addition, the pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability.

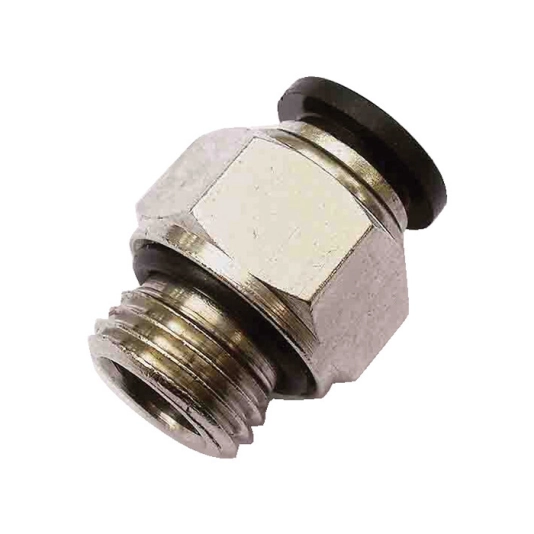

This range of Straight Connectors allow for quick and simple tube insertion. The compact, lightweight design makes for a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. The main body is manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar. Available in a range of sizes and specifications, each product is suitable for nylon and polyurethane tubing.





Features and Benefits


• Lightweight and compact design


• Suited for use with nylon or polyurethane tubing for versatility of use


• Available in a range of sizes to suit your requirements


• Manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, a nitrile tube seal and acetal resin tube release collar for ultimate durability and functionality


• Push-fit function allows for quick and easy insertion of tubing





Typical Applications


• Engineering


• Plumbing


• Automotive

Elbow Connector to Male Parallel


Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.


Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.

B7444 - Suitable for production and assembly applications. Twin hammer mechanism. 1/2" square drive. Three position dial style speed regulator. Forward/reverse selection. Ergonomic and comfortable handle grip. Fixed inlet and exhaust.
Forward: position 1: 4000rpm, position 2: 5000rpm, position 3: 7000rpm.
Reverse: position 1: 3000rpm, position 2: 5000rpm, position 3: 7000rpm.
Square : 1/2"
Maximum torque: 813Nm
Recommended air pressure: 6.2bar/90psi.
Air consumption:(113ltr/min).
Air inlet thread: 1/4" NPT.
Minimum air hose size (ID): 10mm (3/8").

*Based on a 15 second cycle per minute average use.
