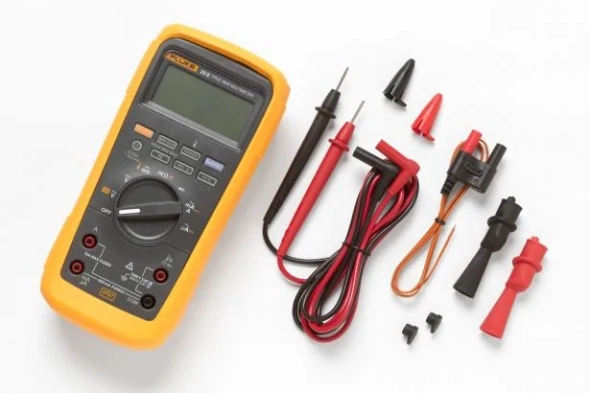

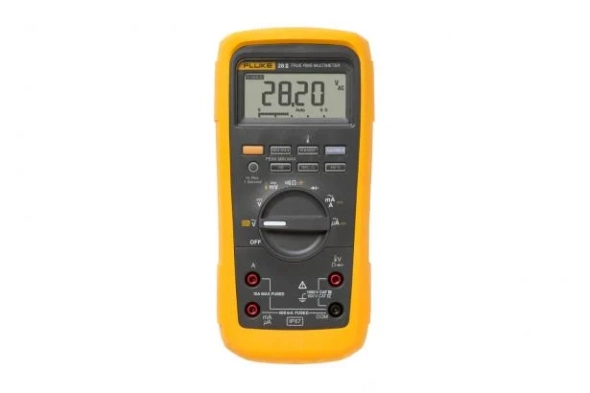

Fluke 28 II Rugged Digital Multimeter
The NEW standard for rugged

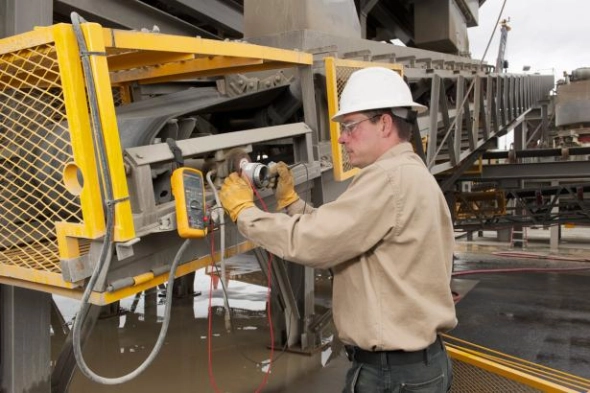

The Fluke 27 II and 28 II digital multimeters set a new standard for operation in harsh conditions with the features and accuracy to solve most electrical problems. Both gauges are IP 67 rated (water and dust repellent), MSHA approved, extended operating temperature range of -15°C to +55°C (5°F to 131°F, -40°C for s /s 20 minutes) and 95 % humidity, and has been designed and tested to withstand a 3 m (10 ft) drop. The Fluke 20 Series Multimeter is designed to work in the toughest environments.
The Fluke 27 II and 28 II digital multimeters set a new standard for operation in harsh conditions with the features and accuracy to solve most electrical problems. Both gauges are IP 67 rated (water and dust repellent), MSHA approved, extended operating temperature range of -15°C to +55°C (5°F to 131°F, -40°C for s /s 20 minutes) and 95 % humidity, and has been designed and tested to withstand a 3 m (10 ft) drop. The Fluke 20 Series Multimeter is designed to work in the toughest environments.
Download
