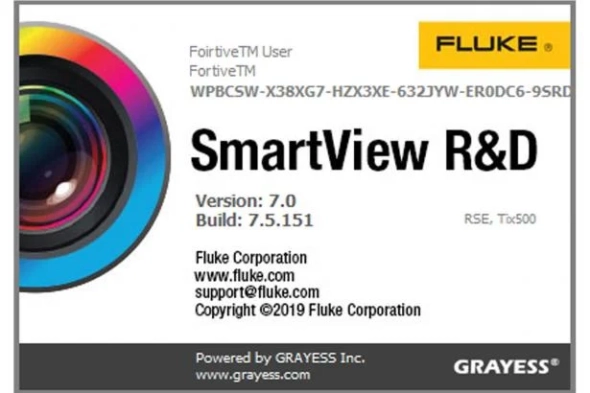

Fluke SmartView R&D Thermal Imaging Software
- Customizable reports - display the information you need based on your application
- Real time radiometric data streaming capability
- Data trending and time plots

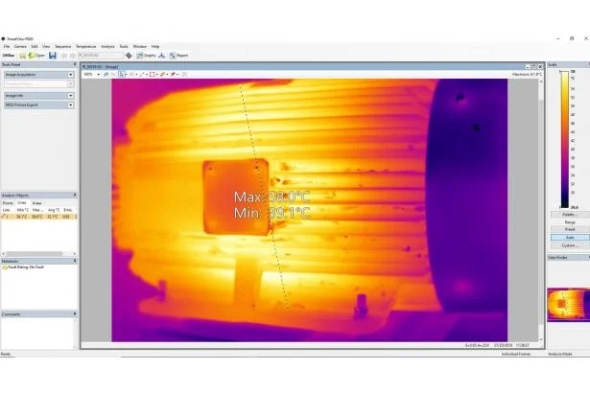

- Advanced analysis features; Spot measures, lines/profiles, area/histograms, hot/cold markers, rulers, adjustable emmisivity by object, and more
- Easy to use file management
- Real time radiometric data streaming capability
- Data trending and time plots
- Advanced analysis features; Spot measures, lines/profiles, area/histograms, hot/cold markers, rulers, adjustable emmisivity by object, and more
- Easy to use file management
