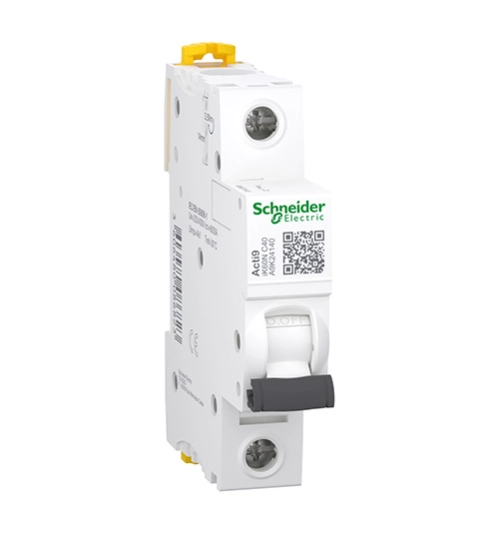

Schneider miniature circuit breaker - iK60N - 1P - 40 A - C curve
This Acti9 iK60N product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 40A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard and at conforming to standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. It has a double clip for dismounting with comb busbar in place. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 100g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.
Download
Products Lainnya
Type of Luminaire : High Efficacy/Standard High Bay
Set Model No : NYV20150BE2A
Type of Light Source LED
Power Input : 75W
System Lumen Output : 10710 lm
System Efficacy : 143 lm/W
Power Voltage : 220-240V
Power Factor : 0.95
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Surge Protection : 10kVA
Dimensions : 240mmx166mm
Weight : 1.99 kg
Body : ADC(Black)
Set Model No : NYV20150BE2A
Type of Light Source LED
Power Input : 75W
System Lumen Output : 10710 lm
System Efficacy : 143 lm/W
Power Voltage : 220-240V
Power Factor : 0.95
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 80
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Beam Angle : 60deg.
IP Rating : 65
Ambient Temperature : -30 - 50°C
Surge Protection : 10kVA
Dimensions : 240mmx166mm
Weight : 1.99 kg
Body : ADC(Black)
Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12747LD2031
Type of Light Source : LED
Power Input : 661W
System Lumen Output : 103400 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 54deg.
Beam Angle : 34deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC
Set Model No : NYS12747LD2031
Type of Light Source : LED
Power Input : 661W
System Lumen Output : 103400 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 54deg.
Beam Angle : 34deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx537mmx720mm
Body : ADC
This Domae product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 6A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 400VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ue operational voltage is going from 400VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 81mm x (D) 71.5mm. The weight is 0.285kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.
This Domae product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 1 protected poles and 2A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ue operational voltage is going from 230VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 71.5mm. The weight is 0.190kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.
