Panasonic NSP22650LR

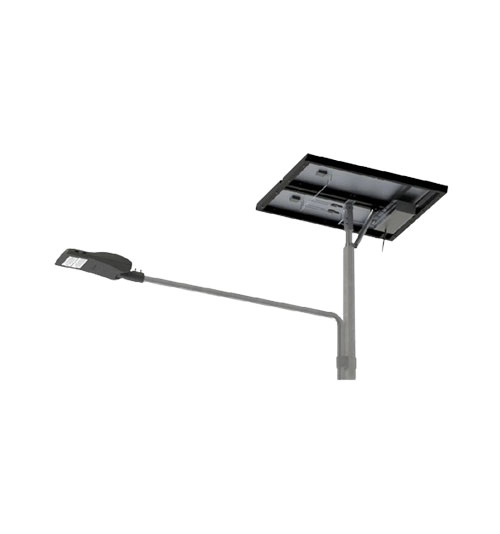

Type of Luminaire : Smart Street Light
Set Model No : NSP10460LR
Type of Light Source : LED
Power Input : 70W
System Lumen Output : 12600 lm
System Efficacy : 180 lm/W
Lifetime : 50000H(L70)
CRI : 70
Dimming : non-Dimmable
Glare Cut Angle : 30deg.
Beam Angle : 120deg.
IP Rating : 66
Ambient Temperature : 5 - 40°C
Dimensions : 340mmx633mmx132mm
Body : ADC & Aluminium Extrution
Set Model No : NSP10460LR
Type of Light Source : LED
Power Input : 70W
System Lumen Output : 12600 lm
System Efficacy : 180 lm/W
Lifetime : 50000H(L70)
CRI : 70
Dimming : non-Dimmable
Glare Cut Angle : 30deg.
Beam Angle : 120deg.
IP Rating : 66
Ambient Temperature : 5 - 40°C
Dimensions : 340mmx633mmx132mm
Body : ADC & Aluminium Extrution
Download
Products Lainnya
This Domae product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 1 protected poles and 2A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 10000 cycles. The Ue operational voltage is going from 230VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 71.5mm. The weight is 0.190kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.
Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12547LD2031
Type of Light Source : LED
Power Input : 432W
System Lumen Output : 65500 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 54deg.
Beam Angle : 34deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx534mmx500mm
Body : ADC
Set Model No : NYS12547LD2031
Type of Light Source : LED
Power Input : 432W
System Lumen Output : 65500 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 54deg.
Beam Angle : 34deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx534mmx500mm
Body : ADC
Type of Luminaire : Standard Floodlight (Pro) A Series
Set Model No : NYS12517LD2031
Type of Light Source : LED
Power Input : 442W
System Lumen Output : 63200 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 77deg.
Beam Angle : 27deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx534mmx500mm
Body : ADC
Set Model No : NYS12517LD2031
Type of Light Source : LED
Power Input : 442W
System Lumen Output : 63200 lm
Power Voltage : 200-242V
Lifetime : 40000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : non-Dimmable
Glare Cut Angle : 77deg.
Beam Angle : 27deg.
IP Rating : 65
Ambient Temperature : -20 - 35°C
Dimensions : 487mmx534mmx500mm
Body : ADC
Type of Luminaire : Street Light EVO
Set Model No : NNP11740GL
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 5200 lm
Power Voltage : 100-240V
Power Factor : 0.90
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : 5 steps automatic dimming
IP Rating : 66
Ambient Temperature : 5°C~40°C
Dimensions : 674×142×105mm
Body : ADC
Set Model No : NNP11740GL
Type of Light Source : LED
Power Input : 40W
System Lumen Output : 5200 lm
Power Voltage : 100-240V
Power Factor : 0.90
Lifetime : 50000H(L70)
CCT : 5000K
CRI : 70
Input Frequency : 50/60Hz
Dimming : 5 steps automatic dimming
IP Rating : 66
Ambient Temperature : 5°C~40°C
Dimensions : 674×142×105mm
Body : ADC
