Cutting Tools

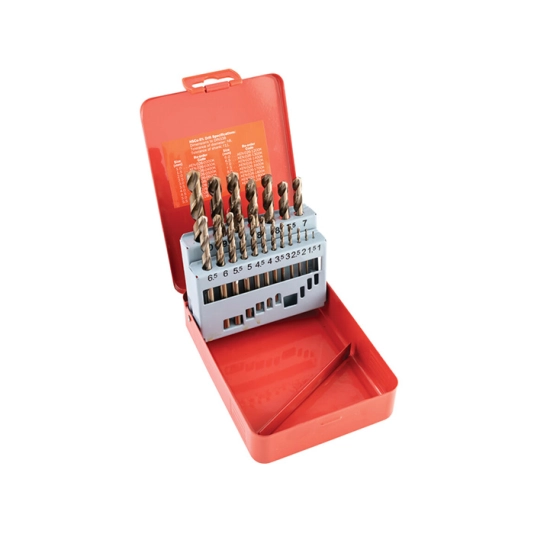

Kennedy Jobber Drill Set, 1mm to 10mm x 0.5mm, Standard Length, Metric, Cobalt High Speed Steel, Set of 19
A 19 piece metric heavy duty drill set made of 5% cobalt material with excellent heat resistance. Ideal for drilling steels with tensile strength up to 1,400 N/mm2, very hard bronze, stainless steels as well as heat and acid resistant steels. The high speed steel and cobalt construction allows for greater rigidity when cutting through harder materials.
Features and Benefits
• Manufactured from high speed steel with 5% cobalt for added strength
• Excellent heat and wear resistance for prolonged tool lifespan
• Supplied in a robust carry case for easy portability and storage
Contents
• Set contains 1x 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5 and 10.0 mm drills
Specifications
• Point angle: 135°
• Helix angle: normal
• Web thickness: strengthened
• Relief angle: normal
• Tolerance of diameter: h8
• Tolerance of shank: f11
• Supply unit
• All diameters - 1 pc
• Manufacturing Standard: BS 328, DIN 338B
Typical Applications
• Drilling
• Steel
• Hard bronze
• Stainless steels
Features and Benefits
• Manufactured from high speed steel with 5% cobalt for added strength
• Excellent heat and wear resistance for prolonged tool lifespan
• Supplied in a robust carry case for easy portability and storage
Contents
• Set contains 1x 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5 and 10.0 mm drills
Specifications
• Point angle: 135°
• Helix angle: normal
• Web thickness: strengthened
• Relief angle: normal
• Tolerance of diameter: h8
• Tolerance of shank: f11
• Supply unit
• All diameters - 1 pc
• Manufacturing Standard: BS 328, DIN 338B
Typical Applications
• Drilling
• Steel
• Hard bronze
• Stainless steels
Download
Products Lainnya
The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118° point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. The coating also helps reduce the risk of the tool staining.
Features and Benefits
• High speed steel construction for increased tool durability
• Point angle of 118° for precise holemaking and precision cutting
• Black oxide coating helps aid chip flow, reduce heat and prevent staining
• Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite
Typical Applications
• Cutting and drilling
• Ferrous materials
• Steel
• Iron
• Nickel
• Brass
• Aluminium alloy
• Graphite
Notes
• Available in sizes 0.25mm -20.00mm
Standards
• Manufactured to BS 328/DIN338RN
Features and Benefits
• High speed steel construction for increased tool durability
• Point angle of 118° for precise holemaking and precision cutting
• Black oxide coating helps aid chip flow, reduce heat and prevent staining
• Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite
Typical Applications
• Cutting and drilling
• Ferrous materials
• Steel
• Iron
• Nickel
• Brass
• Aluminium alloy
• Graphite
Notes
• Available in sizes 0.25mm -20.00mm
Standards
• Manufactured to BS 328/DIN338RN
Recommended for simple, low cost removal of broken screws and bolts, these 4 and 6 piece sets from Kennedy are the ideal way to extract screws. designed to remove broken screws without damaging the threads of the component, each set has varying sizes to ensure you find the right size based on your needs.
Features and Benefits
• Available as a 4 or 6 piece set to sllow you to select the product most relevant to your needs
• An economic, easy way to replace broken screws without damaging the component
• Packaging has easy read labeling to inform you of the recommended drill size to fit the extractor best
• Sizes compatible with drills are as follows (in), no.1 - 5/64, no.2 - 7/64, no.3 - 5/32, no.4 - 1/4, no.5 - 19/64, no.6 - 13/32
Contents
• 4 Piece Set Sizes: No. 2, 3, 4 and 5
• 6 Piece Set Sizes: No. 1, 2, 3, 4, 5 and 6
Typical Applications
• Ideal for removing broken or damaged screws from materials without damaging the thread
Features and Benefits
• Available as a 4 or 6 piece set to sllow you to select the product most relevant to your needs
• An economic, easy way to replace broken screws without damaging the component
• Packaging has easy read labeling to inform you of the recommended drill size to fit the extractor best
• Sizes compatible with drills are as follows (in), no.1 - 5/64, no.2 - 7/64, no.3 - 5/32, no.4 - 1/4, no.5 - 19/64, no.6 - 13/32
Contents
• 4 Piece Set Sizes: No. 2, 3, 4 and 5
• 6 Piece Set Sizes: No. 1, 2, 3, 4, 5 and 6
Typical Applications
• Ideal for removing broken or damaged screws from materials without damaging the thread
Series J100 - Metric general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite.
Features and Benefits
• High speed steel construction with bright finish for increased toughness
• Supplied in the as-ground condition for use with non ferrous materials
Standards
• Manufactured to BS 328/DIN338RN
Notes
• Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials.
Features and Benefits
• High speed steel construction with bright finish for increased toughness
• Supplied in the as-ground condition for use with non ferrous materials
Standards
• Manufactured to BS 328/DIN338RN
Notes
• Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials.
The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118° point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. The coating also helps reduce the risk of the tool staining.
Features and Benefits
• High speed steel construction for increased tool durability
• Point angle of 118° for precise holemaking and precision cutting
• Black oxide coating helps aid chip flow, reduce heat and prevent staining
• Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite
Typical Applications
• Cutting and drilling
• Ferrous materials
• Steel
• Iron
• Nickel
• Brass
• Aluminium alloy
• Graphite
Notes
• Available in sizes 0.25mm -20.00mm
Standards
• Manufactured to BS 328/DIN338RN
Features and Benefits
• High speed steel construction for increased tool durability
• Point angle of 118° for precise holemaking and precision cutting
• Black oxide coating helps aid chip flow, reduce heat and prevent staining
• Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite
Typical Applications
• Cutting and drilling
• Ferrous materials
• Steel
• Iron
• Nickel
• Brass
• Aluminium alloy
• Graphite
Notes
• Available in sizes 0.25mm -20.00mm
Standards
• Manufactured to BS 328/DIN338RN
